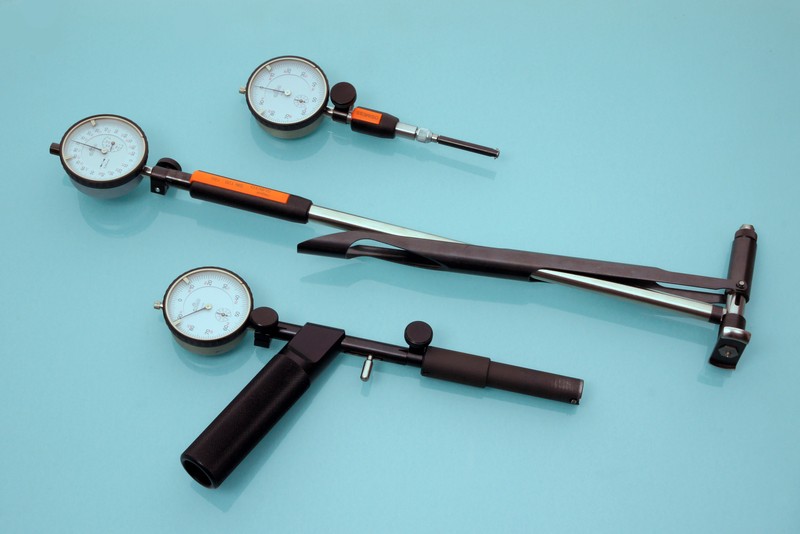

Measuring of internal threads

Based on our proven internal measuring instruments, SCHWENK offers an option, which makes the advantages of these measuring instruments also useful for the measuring of internal threads.


•    To measure the pitch diameter
•    The measurement is made quasi according to the principle of Abbé
•    From thread size M8
•    Also fine for metric, trapezoid, buttress, round and special threads
•    Exchangeable measuring inserts from thread diameter 20 mm
•    Large measuring depths are possible
•    For setting a thread setting master is required

klick on the picture for enlarged view
